UPD78042F - (UPD78042F-UPD78045F) 8-Bit Single-Chip Microcomputer

Name: UPD78042F
SKU: UPD78042F-501063

NEC

The UPD78042F by NEC is a (UPD78042F-UPD78045F) 8-Bit Single-Chip Microcomputer. Below is the official datasheet preview.

Datasheet Details

Part number	UPD78042F
Manufacturer	NEC
File Size	510.33 KB
Description	(UPD78042F-UPD78045F) 8-Bit Single-Chip Microcomputer
Datasheet	UPD78042F_NEC.pdf

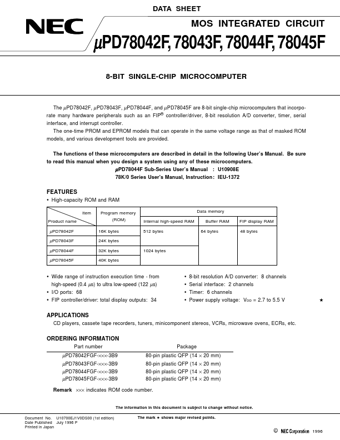

Additional preview pages of the UPD78042F datasheet.

High-capacity ROM and RAM Item Product name Program memory (ROM) 16K bytes 24K bytes 32K bytes 40K bytes 1024 bytes Data memory Internal high-speed RAM 512 bytes Buffer RAM 64 bytes FIP display RAM 48 bytes mPD78042F mPD78043F mPD78044F mPD78045F.
Wide range of instruction execution time - from high-speed (0.4 ms) to ultra low-speed (122 ms).
I/O ports: 68.
FIP controller/driver: total display outputs: 34.
