UPD720113 - USB 2.0 HUB CONTROLLER

Description

are provided in the following user’s manual.

Be sure to read the manual before designing.

Features

  • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.5/12/480 Mbps).
  • Certified by USB implementers forum and granted the USB 2.0 high-speed Logo.
  • High-speed or full-speed packet protocol sequencer for Endpoint 0/1.
  • 7 (Max. ) downstream facing ports.
  • All downstream facing ports can handle high-speed (480 Mbps), full-speed (12 Mbps), and low-speed (1.5 Mbps) transaction.
  • Supports split transaction to handle full-speed an.

📥 Download Datasheet

Datasheet Details

Part number UPD720113
Manufacturer NEC
File Size 377.52 KB
Description USB 2.0 HUB CONTROLLER
Datasheet download datasheet UPD720113 Datasheet

📁 Similar Datasheet

  • UPD72020 - CMOS Graphics Display Controller (NEC Electronics)
  • UPD720201 - USB3.0 HOST CONTROLLER (Renesas)
  • UPD720202 - USB3.0 HOST CONTROLLER (Renesas)
  • UPD72020GC-8-3B6 - CMOS Graphic Display Controller (ETC)
  • uPD720210 - Four-port USB3.0 Hub Controller (Renesas)
  • uPD720210 - Four-port USB3.0 Hub Controller User Hardware Manual (Renesas)
  • UPD72022 - Intelligent Display Processor (NEC Electronics)
  • uPD720231 - USB3.0 to SATA3 BRIDGE CONTROLLER User Hardware Manual (Renesas)
  • uPD720231A - USB3.0 to SATA3 BRIDGE CONTROLLER (Renesas)
  • UPD72064 - Floppy Disk Controller (NEC Electronics)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

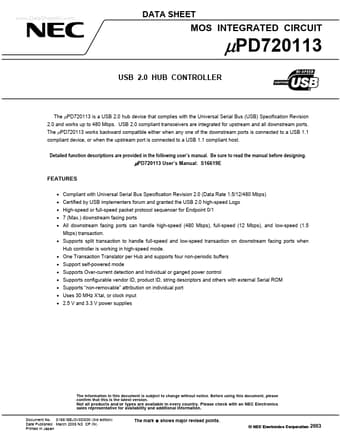

www.DataSheet4U.com DATA SHEET MOS INTEGRATED CIRCUIT µPD720113 USB 2.0 HUB CONTROLLER The µPD720113 is a USB 2.0 hub device that complies with the Universal Serial Bus (USB) Specification Revision 2.0 and works up to 480 Mbps. USB 2.0 compliant transceivers are integrated for upstream and all downstream ports. The µPD720113 works backward compatible either when any one of the downstream ports is connected to a USB 1.1 compliant device, or when the upstream port is connected to a USB 1.1 compliant host. Detailed function descriptions are provided in the following user’s manual. Be sure to read the manual before designing. µPD720113 User’s Manual: S16619E FEATURES • Compliant with Universal Serial Bus Specification Revision 2.0 (Data Rate 1.
