UPD70F3040Y - V850/SV1TM 32-/16-BIT SINGLE-CHIP MICROCONTROLLERS

Name: UPD70F3040Y
SKU: UPD70F3040Y-298249

NEC

📥 Download Datasheet

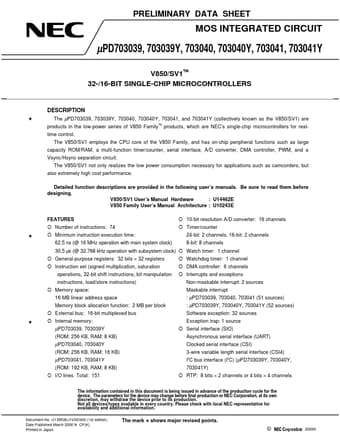

UPD70F3040Y Datasheet Preview — Preview of UPD70F3040Y PDF

Datasheet Details

Part number	UPD70F3040Y
Manufacturer	NEC
File Size	292.06 KB
Description	V850/SV1TM 32-/16-BIT SINGLE-CHIP MICROCONTROLLERS
Datasheet	UPD70F3040Y_NEC.pdf

UPD70F3040Y Product details

Description

The µPD703039, 703039Y, 703040, 703040Y, 703041, and 703041Y (collectively known as the V850/SV1) are products in the low-power series of V850 FamilyTM products, which are NEC’s single-chip microcontrollers for realtime control.

Features

{ Number of instructions: 74 { Minimum instruction execution time: 62.5 ns (@ 16 MHz operation with main system clock) { General-purpose registers: 32 bits × 32 registers { Instruction set (signed multiplication, saturation operations, 32-bit shift instructions, bit manipulation instructions, load/store instructions) { Memory space: 16 MB linear address space Memory block allocation function: 2 MB per block { External bus: 16-bit multiplexed bus { Internal memory: { 10-bit resolution A/D convert.
