UPD705102 - V832TM 32-BIT MICROPROCESSOR

NEC

The UPD705102 by NEC is a V832TM 32-BIT MICROPROCESSOR. Below is the official datasheet preview.

📥 Download Datasheet

UPD705102 V832TM 32-BIT MICROPROCESSOR by NEC - Datasheet Preview — Official preview page of the **UPD705102** V832TM 32-BIT MICROPROCESSOR datasheet (NEC).

Datasheet Details

Part number	UPD705102
Manufacturer	NEC
File Size	536.05 KB
Description	V832TM 32-BIT MICROPROCESSOR
Datasheet	UPD705102_NEC.pdf

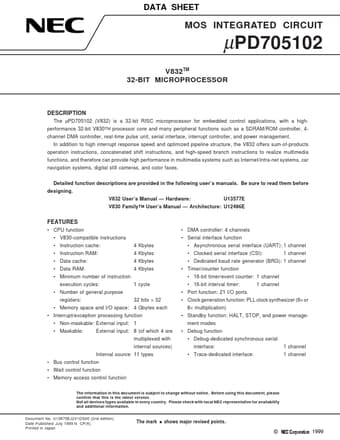

Additional preview pages of the UPD705102 datasheet.

UPD705102 Product details

Description

The µPD705102 (V832) is a 32-bit RISC microprocessor for embedded control applications, with a highperformance 32-bit V830TM processor core and many peripheral functions such as a SDRAM/ROM controller, 4channel DMA controller, real-time pulse unit, serial interface, interrupt controller, and power management.

Features

CPU function.
V830-compatible instructions.
Instruction cache:.
Instruction RAM:.
Data cache:.
Data RAM:.
Minimum number of instruction execution cycles:.
Number of general purpose registers: 32 bits × 32.
Memory space and I/O space: 4 Gbytes each.
Interrupt/exception processing function.
Non-maskable: External input: 1.
Maskable: External input: 8 (of which 4 are multiplexed with interna.
