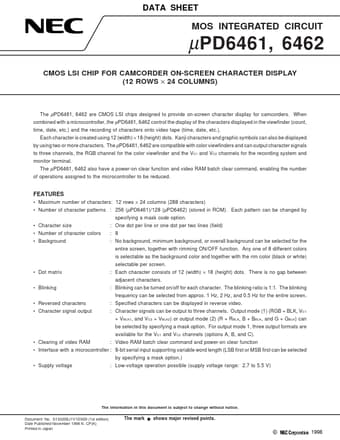

UPD6461 Datasheet Preview — Preview of UPD6461 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	UPD6461
Manufacturer	NEC
File Size	411.41 KB
Description	CMOS LSI CHIP
Datasheet	UPD6461_NEC.pdf

UPD6461 Product details

Description

Input pin for the data read clock.

Features

Maximum number of characters: 12 rows × 24 columns (288 characters).
Number of character patterns : 256 (µPD6461)/128 (µPD6462) (stored in ROM). Each pattern can be changed by specifying a mask code option.
Character size.
Number of character colors.
Background : One dot per line or one dot per two lines (field) : 8 : No background, minimum background, or overall background can be selected for the entire screen, together with rimming ON/OFF function.
