UPD424210-60, UPD424210 - 4 M-BIT DYNAMIC RAM

Name: UPD424210-60
SKU: UPD424210-60-916858

NEC

The UPD424210-60 by NEC is a 4 M-BIT DYNAMIC RAM. Below is the official datasheet preview.

Datasheet Details

Part number	UPD424210-60, UPD424210
Manufacturer	NEC
File Size	345.84 KB
Description	4 M-BIT DYNAMIC RAM
Datasheet	UPD424210-NEC.pdf
Note	This datasheet PDF includes multiple part numbers: UPD424210-60, UPD424210. Please refer to the document for exact specifications by model.

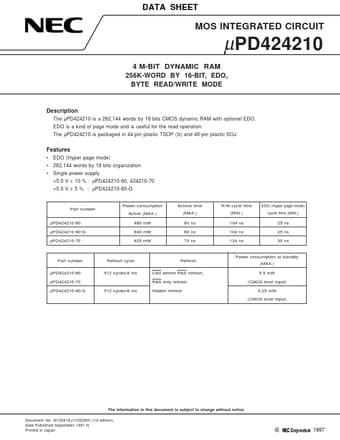

Additional preview pages of the UPD424210-60 datasheet.

The µPD424210 is a 262,144 words by 16 bits CMOS dynamic RAM with optional EDO.

EDO (Hyper page mode).
262,144 words by 16 bits organization.
Single power supply +5.0 V ± 10 % : µPD424210-60, 424210-70 +5.0 V ± 5 % : µPD424210-60-G Part number µPD424210-60 µPD424210-60-G µPD424210-70 Power consumption Active (MAX. ) 880 mW 840 mW 825 mW Access time (MAX. ) 60 ns 60 ns 70 ns R/W cycle time (MIN. ) 104 ns 104 ns 124 ns EDO (Hyper page mode) cycle time (MIN. ) 25 ns 25 ns 30 ns Part number µPD424210-60 µPD424210-70 µPD424210-60-G Refresh cycle 51.
