UPD2332B-1 - FULLY DECODED 32K-BIT MASK PROGRAMMABLE READ ONLY MEMORY

Download the UPD2332B-1 datasheet PDF (UPD2332A included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fully decoded 32k-bit mask programmable read only memory.

Features

  • high speed and TTL compatibility for simple interface with bipolar circuits.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (UPD2332A-NEC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number UPD2332B-1
Manufacturer NEC
File Size 166.30 KB
Description FULLY DECODED 32K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
Datasheet download datasheet UPD2332B-1 Datasheet

📁 Similar Datasheet

  • UPD2364 - ROM 8192 words / 8-Bit (NEC Electronics)
  • UPD2364A - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD2364E - 8192 x 8-Bit Mask Programmable NMOS ROM (NEC Electronics)
  • UPD23C1000A - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1000EA - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1001E - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1010A - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C1024E - Mask Programmable CMOS ROM (NEC Electronics)
  • UPD23C256E - 32768 x 8-Bit Mask-Programmable CMOS ROM (NEC Electronics)
  • UPD23C512E - 65K x 8-Bit Mask Programmable CMOS ROM (NEC Electronics)
Other Datasheets by NEC
  • UPD2332B - FULLY DECODED 32K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD2332A - FULLY DECODED 32K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD2332A-1 - FULLY DECODED 32K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD2308A - FULLY DECODED 8K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD23128 - FULLY DECODED 128K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD2316E - FULLY DECODED 16K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD2316E-1 - FULLY DECODED 16K-BIT MASK PROGRAMMABLE READ ONLY MEMORY
  • UPD23C128000BL - 128M-BIT MASK-PROGRAMMABLE ROM

Full PDF Text Transcription

Click to expand full text

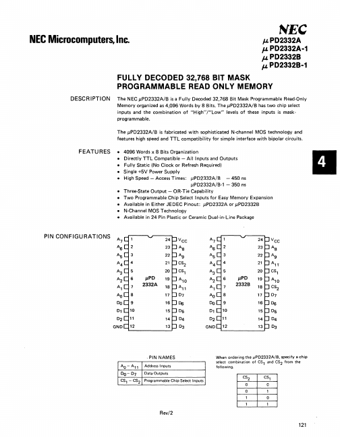

NEe Microcomputers, Inc. NEe J.LPD2332A fL PD2332A-1 J.L PD2332B J.L PD2332B-1 FULLY DECODED 32,768 BIT MASK PROGRAMMABLE READ ONLY MEMORY DESCR IPTION The NEC IlPD2332A/B is a Fully Decoded 32,768 Bit Mask Programmable Read-Only Memory organized as 4,096 Words by 8 Bits. The }.lPD2332A/B has two chip select inputs and the combination of "High"/"Low" levels of these inputs is maskprogrammable. The }.lPD2332A/B is fabricated with sophisticated N-channel MaS technology and features high speed and TTL compatibility for simple interface with bipolar circuits. FEATURES • 4096 Words x 8 Bits Organization • Directly TTL Compatible - All Inputs and Outputs • Fully Static (No Clock or Refresh Required) • Single +5V Power Supply • High Speed - Access Times: }.lPD2332A/B - 450 ns }.
