This datasheet also covers the UPD2114L variant, as both devices belong to the same 4k-bit static ram family and are provided as variant models within a single manufacturer datasheet.

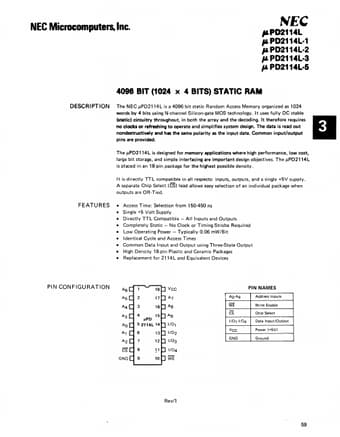

Description
4098 BIT (1024 )( 4 BITS) STATIC RAM
The NEC I.lPD2114L is a 4096 bit static Random Access Memory organized as 1024 words by 4 bits using N-channeISilicon-gate MOS technology_ It uses fully DC stable (static) circuitry throughout, in both the array and the decoding_ It therefore requires no clocks
Features
- Access Time: Selection from 150-450 ns.
- Single +5 Volt Supply.
- Directly TTL Compatible - All Inputs and Outputs.
- Completely Static - No Clock or Timing Strobe. Required.
- Low Operating Power - Typically 0.06 mW/8it.
- Identical Cycle and Access Times.
- Common Data Input and Output using Three-State Output.
- High Density 18-pin Plastic and Ceramic Packages.
- Replacement for 2114L and Equivalent Devices
PIN.
UPD2114L-5 Datasheet
