UPD16666A Datasheet PDF (240-OUTPUT LCD ROW DRIVER)

UPD16666A - 240-OUTPUT LCD ROW DRIVER

Description

The PPD16666A is a row (common) driver which contains a RAM capable of full-dot LCD display.

With 240 outputs, this driver can be combined with a column (segment) driver PPD16661A which contains a RAM to display VGA (640 by 480 dots), 1/2 VGA, or 1/4 VGA, etc.

Features

LCD-driven voltage: 20 to 36 V Duty: 1/240 Driving type: 2 lines selected simultaneously Output count: 240 outputs Capable of gray level display: 4 gray levels (frame rate control).

Datasheet Details

Part number	UPD16666A
Manufacturer	NEC
File Size	120.11 KB
Description	240-OUTPUT LCD ROW DRIVER
Datasheet	UPD16666A Datasheet

📁 Similar Datasheet

uPD166009 - N-channel high-side switch (Renesas)

UPD166015GR - N-Channel MOS (Renesas)

UPD166031AT1U - INTELLIGENT POWER DEVICE - IPD (Renesas)

uPD166032T1U - INTELLIGENT POWER DEVICE - IPD (Renesas)

UPD166033T1U - INTELLIGENT POWER DEVICE - IPD (Renesas)

uPD166035GR - INTELLIGENT POWER DEVICE - IPD (Renesas)

uPD166038T1J - IPD (Renesas)

uPD16641 - 240-OUTPUT TFT-LCD SOURCE DRIVER (Renesas)

uPD16652 - 200/192-OUTPUT TFT-LCD GATE DRIVER (Renesas)

UPD160032A - 480-OUTPUT TFT-LCD SOURCE DRIVER (Renesas)

Full PDF Text Transcription

Click to expand full text

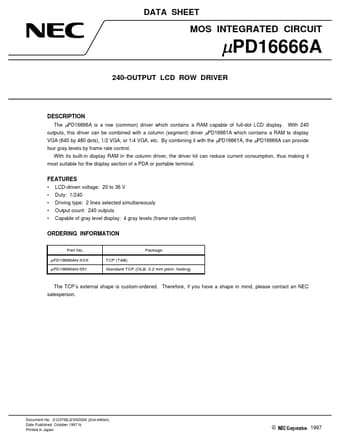

DATA SHEET MOS INTEGRATED CIRCUIT PPD16666A 240-OUTPUT LCD ROW DRIVER DESCRIPTION The PPD16666A is a row (common) driver which contains a RAM capable of full-dot LCD display. With 240 outputs, this driver can be combined with a column (segment) driver PPD16661A which contains a RAM to display VGA (640 by 480 dots), 1/2 VGA, or 1/4 VGA, etc. By combining it with the PPD16661A, the PPD16666A can provide four gray levels by frame rate control. With its built-in display RAM in the column driver, the driver kit can reduce current consumption, thus making it most suitable for the display section of a PDA or portable terminal.
