UPC8179TK - SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS

Description

NEC's UPC8179TK is a silicon monolithic integrated circuit designed as an amplifier for mobile communications.

This IC can realize low current consumption with external chip inductor.

Features

  • HIGH.

📥 Download Datasheet

Datasheet Details

Part number UPC8179TK
Manufacturer NEC
File Size 241.55 KB
Description SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS
Datasheet download datasheet UPC8179TK Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
uPC8179TK SILICON MMIC LOW CURRENT AMPLIFIER Renesas
UPC817 4 PIN DIP PHOTOTRANSISTOR PHOTOCOUPLER UTC
UPC8172TB SILICON RFIC 2.5 GHz FREQUENCY UP-CONVERTER CEL
UPC812G2 Operational Amplifier ETC
UPC814C TTL Dual Operational Amplifier ETC

Other Datasheets by NEC

Part Number Description
UPC8179TB SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS
UPC8172TB SILICON MMIC 2.5 GHz FREQUENCY UP-CONVERTER FOR WIRELESS TRANSCEIVER
UPC8178TB SILICON MMIC LOW CURRENT AMPLIFIER FOR MOBILE COMMUNICATIONS
UPC8100GR SILICON UP/DOWN CONVERTERS IC FOR 800 MHz to 900 MHz MOBILE COMMUNICATIONS
UPC8101GR 3 V/ SILICON MMIC 150 MHz QUADRATURE MODULATOR

Full PDF Text Transcription

Click to expand full text

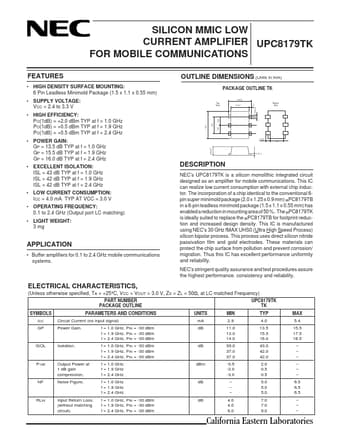

SILICON MMIC LOW CURRENT AMPLIFIER UPC8179TK FOR MOBILE COMMUNICATIONS FEATURES • HIGH DENSITY SURFACE MOUNTING: 6 Pin Leadless Minimold Package (1.5 x 1.1 x 0.55 mm) • SUPPLY VOLTAGE: VCC = 2.4 to 3.3 V • HIGH EFFICIENCY: PO(1dB) = +2.0 dBm TYP at f = 1.0 GHz PO(1dB) = +0.5 dBm TYP at f = 1.9 GHz PO(1dB) = +0.5 dBm TYP at f = 2.4 GHz • POWER GAIN: GP = 13.5 dB TYP at f = 1.0 GHz GP = 15.5 dB TYP at f = 1.9 GHz GP = 16.0 dB TYP at f = 2.4 GHz • EXCELLENT ISOLATION: ISL = 43 dB TYP at f = 1.0 GHz ISL = 42 dB TYP at f = 1.9 GHz ISL = 42 dB TYP at f = 2.4 GHz • LOW CURRENT CONSUMPTION: ICC = 4.0 mA TYP AT VCC = 3.0 V • OPERATING FREQUENCY: 0.1 to 2.4 GHz (Output port LC matching) • LIGHT WEIGHT: 3 mg Top View OUTLINE DIMENSIONS (Units in mm) PACKAGE OUTLINE TK 1.3±0.05 1.1±0.1 0.
