UPC8131TA - VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE

NEC

The UPC8131TA by NEC is a VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE. Below is the official datasheet preview.

📥 Download Datasheet

UPC8131TA VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE by NEC - Datasheet Preview — Official preview page of the **UPC8131TA** VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE datasheet (NEC).

Datasheet Details

Part number	UPC8131TA
Manufacturer	NEC
File Size	550.62 KB
Description	VARIABLE GAIN AMPLIFIER SILICON MMIC FOR TRANSMITTER AGC OF DIGITAL CELLULAR TELEPHONE
Datasheet	UPC8131TA_NEC.pdf

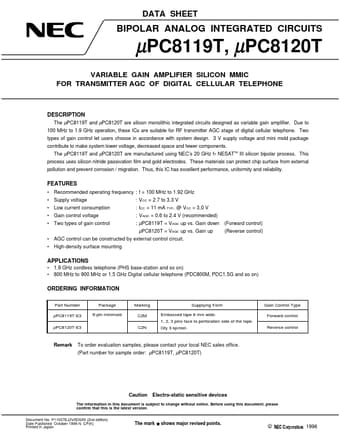

Additional preview pages of the UPC8131TA datasheet.

UPC8131TA Product details

Description

The µPC8119T and µPC8120T are silicon monolithic integrated circuits designed as variable gain amplifier.

Features

Recommended operating frequency : f = 100 MHz to 1.92 GHz.
Supply voltage.
Low current consumption.
Gain control voltage.
Two types of gain control : VCC = 2.7 to 3.3 V : ICC = 11 mA TYP. @ VCC = 3.0 V : VAGC = 0.6 to 2.4 V (recommended) : µPC8119T = VAGC up vs. Gain down (Forward control) (Reverse control) µPC8120T = VAGC up vs. Gain up.
AGC control can be constructed by external control circuit.
High-density surface mounting AP.
