UPC2713T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER

Features

  • High power gain.
  • Low noise figure.
  • Single supply voltage.
  • Input and output matching.
  • Mini package : 29 dB TYP. @ f = 0.5 GHz : 3.2 dB TYP. : 5V : 50 .
  • Excellent frequency response : 1.2 GHz TYP. @ 3 dB down below the gain at 0.1 GHz : 6 pin mini mold.

📥 Download Datasheet

Datasheet Details

Part number UPC2713T
Manufacturer NEC
File Size 195.80 KB
Description 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER
Datasheet download datasheet UPC2713T Datasheet

📁 Similar Datasheet

  • uPC271 - High Performance Comparator (Renesas)
  • uPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER (Renesas)
  • UPC2710TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER (CEL)
  • UPC2711TB - SILICON MMIC WIDEBAND AMPLIFIER (CEL)
  • UPC2712T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER (CEL)
  • UPC2712TB - SILICON MMIC WIDEBAND AMPLIFIER (CEL)
  • UPC2709T - 2.5GHz SILICON MMIC WIDE-BAND AMPLIFIER (CEL)
  • UPC2709TB - SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER (CEL)
  • UPC272 - (UPC272 / UPC319) (ETC)
  • UPC2721GV - SILICON MMIC L-BAND DOWN CONVERTER (CEL)
Other Datasheets by NEC
  • UPC271 - Precision Voltage Comparators
  • UPC2710T - 1.5 GHz SILICON MMIC WIDE-BAND AMPLIFIER
  • UPC2711T - 2.9GHz WIDE BAND AMPLIFIER
  • UPC2712T - 2.6GHz WIDE BAND AMPLIFIER
  • UPC2714T - 1.8GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER
  • UPC2715T - 1.2GHz LOW POWER CONSUMPTION WIDE-BAND AMPLIFIER
  • UPC2708T - 3 GHz SILICON MMIC WIDE-BAND AMPLIFIER
  • UPC2708TB - 5 V/ SUPER MINIMOLD SILICON MMIC MEDIUM OUTPUT POWER AMPLIFIER

Full PDF Text Transcription

Click to expand full text

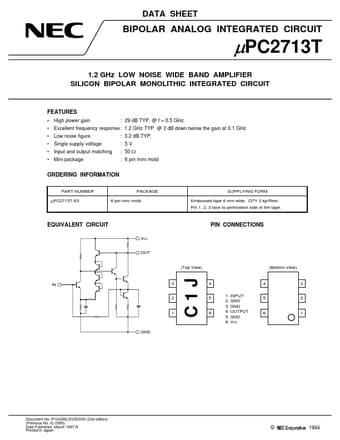

DATA SHEET BIPOLAR ANALOG INTEGRATED CIRCUIT PC2713T 1.2 GHz LOW NOISE WIDE BAND AMPLIFIER SILICON BIPOLAR MONOLITHIC INTEGRATED CIRCUIT FEATURES • High power gain • Low noise figure • Single supply voltage • Input and output matching • Mini package : 29 dB TYP. @ f = 0.5 GHz : 3.2 dB TYP. : 5V : 50  • Excellent frequency response : 1.2 GHz TYP. @ 3 dB down below the gain at 0.1 GHz : 6 pin mini mold ORDERING INFORMATION PART NUMBER PACKAGE 6 pin mini mold SUPPLYING FORM Embossed tape 8 mm wide. QTY 3 kp/Reel. Pin 1, 2, 3 face to perforation side of the tape. PC2713T-E3 EQUIVALENT CIRCUIT VCC OUT (Top View) PIN CONNECTIONS (Bottom View) IN 3 2 1 C1J 4 5 6 1. INPUT 2. GND 3. GND 4. OUTPUT 5. GND 6. VCC 4 5 6 3 2 1 GND Document No.
