SF139E ORGANIC THERMAL SENSITIVE PELLET TYPE 10 AMPERES RATED CURRENT

SF139E Description

DATA S H E E T Thermal Cutoff SEFUSETM SF/E SERIES ORGANIC THERMAL SENSITIVE PELLET TYPE 10 AMPERES RATED CURRENT NEC's thermal cutoff SE/E series .

SF139E Features

* ™ Approved by UL(USA), CSA(Canada), VDE(Germany), BEAB(UK), and MITI(Japan) ™ Single operation ™ Compact, durable and reliable by hermetic seal structure ™ Excellent sensitive to abnormal temperature rise and high accuracy in operation ™ Stable characteristics in a long-term ™ Capable of opening at

SF139E Applications

* Electric home appliances Electric industeial equipments Office automation equipments Plain paper copiers Transformers Motors, etc. OUTLINE DIMENSIONS (mm) φ 1.0 φ 4.2 20(35) 11 66(81) 35 Note: Dimensions in ( ) are for long lead devices. The information in this document is subject to change

📥 Download Datasheet

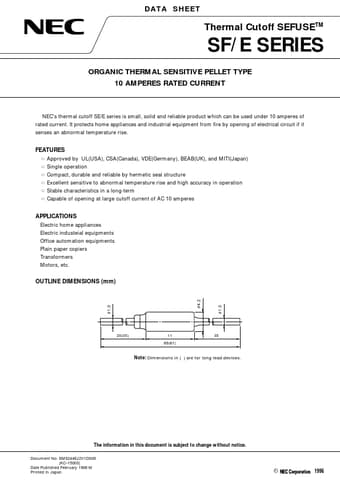

Preview of SF139E PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SF139E
Manufacturer
NEC
File Size
91.57 KB
Datasheet
SF139E_NEC.pdf
Description
ORGANIC THERMAL SENSITIVE PELLET TYPE 10 AMPERES RATED CURRENT
