PS2501L-1 - Photocoupler

Description

The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor.

The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type (Gull-wing) for surface mount.

Features

  • High isolation voltage (BV = 5 000 Vr. m. s. ).
  • High collector to emitter voltage (VCEO = 80 V).
  • High-speed switching (tr = 3 µs TYP. , tf = 5 µs TYP. ).
  • Ordering number of taping product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4.
  • UL approved: File No. E72422 (S).

📥 Download Datasheet

Datasheet Details

Part number PS2501L-1
Manufacturer NEC
File Size 109.52 KB
Description Photocoupler
Datasheet download datasheet PS2501L-1 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PS2501L-1 Photocoupler California Eastern Labs
PS2501L-1 NPN silicon phototransistor Renesas
PS2501L-2 Photocoupler California Eastern Labs
PS2501L-4 Photocoupler California Eastern Labs
PS2501L-4 NPN silicon phototransistor Renesas

Other Datasheets by NEC

Part Number Description
PS2501L-2 Photocoupler
PS2501L-4 Photocoupler
PS2501-1 Photocoupler
PS2501-2 Photocoupler
PS2501-4 Photocoupler

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

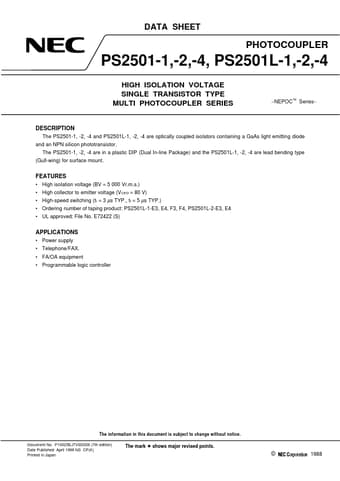

DATA SHEET PHOTOCOUPLER PS2501-1,-2,-4, PS2501L-1,-2,-4 HIGH ISOLATION VOLTAGE SINGLE TRANSISTOR TYPE MULTI PHOTOCOUPLER SERIES −NEPOC TM Series− DESCRIPTION The PS2501-1, -2, -4 and PS2501L-1, -2, -4 are optically coupled isolators containing a GaAs light emitting diode and an NPN silicon phototransistor. The PS2501-1, -2, -4 are in a plastic DIP (Dual In-line Package) and the PS2501L-1, -2, -4 are lead bending type (Gull-wing) for surface mount. FEATURES • High isolation voltage (BV = 5 000 Vr.m.s.) • High collector to emitter voltage (VCEO = 80 V) • High-speed switching (tr = 3 µs TYP., tf = 5 µs TYP.) • Ordering number of taping product: PS2501L-1-E3, E4, F3, F4, PS2501L-2-E3, E4 • UL approved: File No. E72422 (S) APPLICATIONS • Power supply • Telephone/FAX.
