NL10276bc28_05d - TFT COLOR LCD MODULE

NEC

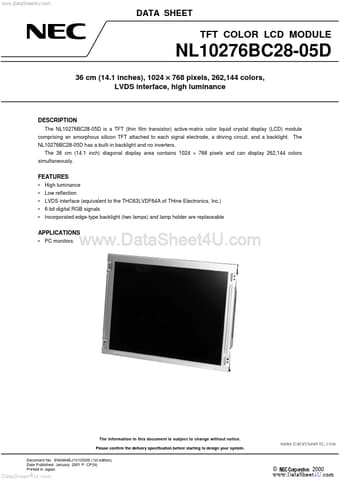

NL10276bc28_05d Datasheet Preview — Preview of NL10276bc28_05d PDF

Datasheet Details

Part number	NL10276bc28_05d
Manufacturer	NEC
File Size	480.94 KB
Description	TFT COLOR LCD MODULE
Datasheet	NL10276bc28_05d_NEC.pdf

NL10276bc28_05d Product details

Description

The NL10276BC28-05D is a TFT (thin film transistor) active-matrix color liquid crystal display (LCD) module comprising an amorphous silicon TFT attached to each signal electrode, a driving circuit, and a backlight.

Features

High luminance.
Low reflection.
LVDS interface (equivalent to the THC63LVDF64A of THine Electronics, Inc. ).
6-bit digital RGB signals.
Incorporated edge-type backlight (two lamps) and lamp holder are replaceable.
