NE76084S - LOW NOISE L TO Ku BAND GaAs MESFET

General Description

The NE76084S provides a low noise figure and high associated gain through 14 GHz.

The NE76084S device is fabricated by ion implantation for improved RF and DC performance, reliability, and uniformity.

Key Features

  • LOW NOISE FIGURE NF = 1.6 dB TYP at f = 12 GHz.
  • HIGH.

📥 Download Datasheet

Datasheet Details

Part number NE76084S
Manufacturer NEC
File Size 42.24 KB
Description LOW NOISE L TO Ku BAND GaAs MESFET
Datasheet download datasheet NE76084S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NE76000 N-CHANNEL GaAs MESFET Renesas
NE71-0.2 GSM Repeater SIPAT
NE720 Magnet latching relay DB Lectro

Other Datasheets by NEC

Part Number Description
NE76084 C to Ku BAND LOW NOISE AMPLIFIER N-CHANNEL GaAs MES FET
NE76000 LOW NOISE L TO Ku BAND GaAs MESFET
NE76000L LOW NOISE L TO Ku BAND GaAs MESFET
NE76038 L TO Ku-BAND GaAs MESFET
NE76100 GENERAL PURPOSE FET N-CHANNEL GaAs MES FET

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

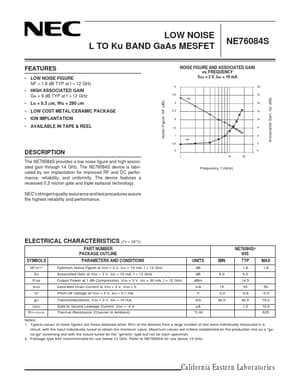

Noise Figure, NF (dB) Associated Gain, GA (dB) LOW NOISE L TO Ku BAND GaAs MESFET NE76084S FEATURES • LOW NOISE FIGURE NF = 1.6 dB TYP at f = 12 GHz • HIGH ASSOCIATED GAIN GA = 9 dB TYP at f = 12 GHz • LG = 0.3 µm, WG = 280 µm • LOW COST METAL/CERAMIC PACKAGE • ION IMPLANTATION • AVAILABLE IN TAPE & REEL DESCRIPTION The NE76084S provides a low noise figure and high associated gain through 14 GHz. The NE76084S device is fabricated by ion implantation for improved RF and DC performance, reliability, and uniformity. The device features a recessed 0.3 micron gate and triple epitaxial technology. NEC's stringent quality assurance and test procedures assure the highest reliability and performance. NOISE FIGURE AND ASSOCIATED GAIN vs. FREQUENCY VDS = 3 V, IDS = 10 mA 4 3.5 Ga 3 2.5 2 1.
