FB1 on-chip resistor NPN silicon epitaxial transistor

NEC

Description

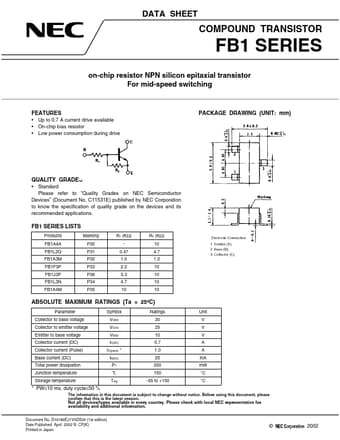

DATA SHEET COMPOUND TRANSISTOR FB1 SERIES on-chip resistor NPN silicon epitaxial transistor For mid-speed switching .
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

📥 Download Datasheet

FB1 Datasheet Preview — Preview of FB1 PDF

Datasheet Specifications

Part number: FB1
Manufacturer: NEC
File Size: 111.04 KB
Datasheet: FB1-NEC.pdf
Description: on-chip resistor NPN silicon epitaxial transistor

Features

* Up to 0.7 A current drive available
* On-chip bias resistor
* Low power consumption during drive PACKAGE DRAWING (UNIT: mm) QUALITY GRADES
* Standard Please refer to “Quality Grades on NEC Semiconductor Devices” (Document No. C11531E) published by NEC Corporation

Applications

* FB1 SERIES LISTS Products Marking FB1A4A FB1L2Q FB1A3M FB1F3P FB1J3P FB1L3N FB1A4M P30 P31 P32 P33 P36 P34 P35 R1 (KΩ)
* 0.47 1.0 2.2 3.3 4.7 10 R2 (KΩ) 10 4.7 1.0 10 10 10 10 ABSOLUTE MAXIMUM RATINGS (Ta = 25°C) Parameter Symbol Ratings Unit Collector to base voltage VCBO 30
