EC2-3S - MINIATURE SIGNAL RELAY

Download the EC2-3S datasheet PDF (EC2 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for miniature signal relay.

Description

The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series.

Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification.

Features

  • ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident ™ UL recognized (E73266), CAS certified (LR46266).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC2.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EC2-3S
Manufacturer NEC
File Size 107.04 KB
Description MINIATURE SIGNAL RELAY
Datasheet download datasheet EC2-3S Datasheet

📁 Similar Datasheet

  • EC2-3NJ - Miniature Signal Relays (KEMET)
  • EC2-3NQJ - Miniature Signal Relays (KEMET)
  • EC2-12NJ - Miniature Signal Relays (KEMET)
  • EC2-12NQJ - Miniature Signal Relays (KEMET)
  • EC2-12NU - Miniature Signal Relays (KEMET)
  • EC2-24NJ - Miniature Signal Relays (KEMET)
  • EC2-24NQJ - Miniature Signal Relays (KEMET)
  • EC2-24NU - Miniature Signal Relays (KEMET)
  • EC2-4.5NJ - Miniature Signal Relays (KEMET)
  • EC2-4.5NQJ - Miniature Signal Relays (KEMET)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

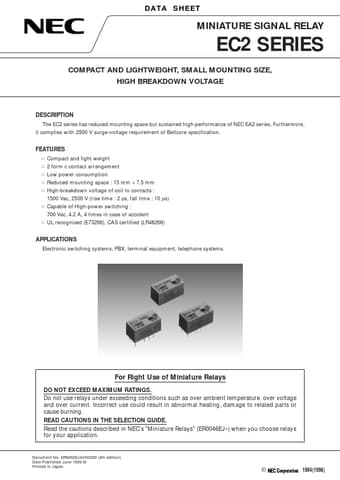

DATA S H E E T MINIATURE SIGNAL RELAY EC2 SERIES COMPACT AND LIGHTWEIGHT, SMALL MOUNTING SIZE, HIGH BREAKDOWN VOLTAGE DESCRIPTION The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series. Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification. FEATURES ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident ™ UL recognized (E73266), CAS certified (LR46266) APPLICATIONS Electronic switching systems, PBX, terminal equipment, telephone systems.
