EC2-12NJ - MINIATURE SIGNAL RELAY

Download the EC2-12NJ datasheet PDF. This datasheet also covers the EC2 variant, as both devices belong to the same miniature signal relay family and are provided as variant models within a single manufacturer datasheet.

Description

The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series.

Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification.

Features

  • ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident ™ UL recognized (E73266), CAS certified (LR46266).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EC2.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EC2-12NJ
Manufacturer NEC
File Size 107.04 KB
Description MINIATURE SIGNAL RELAY
Datasheet download datasheet EC2-12NJ Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EC2-12NJ Miniature Signal Relays KEMET
EC2-12NQJ Miniature Signal Relays KEMET
EC2-12NU Miniature Signal Relays KEMET
EC2-24NJ Miniature Signal Relays KEMET
EC2-24NQJ Miniature Signal Relays KEMET

Other Datasheets by NEC

Part Number Description
EC2-12ND MINIATURE SIGNAL RELAY
EC2-12NP MINIATURE SIGNAL RELAY
EC2-12NU MINIATURE SIGNAL RELAY
EC2-12 MINIATURE SIGNAL RELAY
EC2-12S MINIATURE SIGNAL RELAY

Full PDF Text Transcription

Click to expand full text

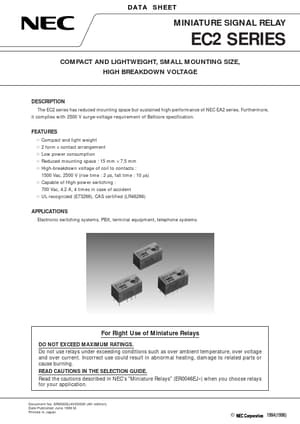

DATA S H E E T MINIATURE SIGNAL RELAY EC2 SERIES COMPACT AND LIGHTWEIGHT, SMALL MOUNTING SIZE, HIGH BREAKDOWN VOLTAGE DESCRIPTION The EC2 series has reduced mounting space but sustained high-performance of NEC EA2 series. Furthermore, it complies with 2500 V surge-voltage requirement of Bellcore specification. FEATURES ™ Compact and light weight ™ 2 form c contact arrangement ™ Low power consumption ™ Reduced mounting space : 15 mm × 7.5 mm ™ High-breakdown voltage of coil to contacts : 1500 Vac, 2500 V (rise time : 2 µs, fall time : 10 µs) ™ Capable of High-power switching : 700 Vac, 4.2 A, 4 times in case of accident ™ UL recognized (E73266), CAS certified (LR46266) APPLICATIONS Electronic switching systems, PBX, terminal equipment, telephone systems.
