EA2-12NP - COMPACT AND LIGHTWEIGHT

Download the EA2-12NP datasheet PDF. This datasheet also covers the EA2 variant, as both devices belong to the same compact and lightweight family and are provided as variant models within a single manufacturer datasheet.

Description

The EA2 series has reduced package size and power consumption to other NEC Conventional relays.

Features

  • ™ Low power consumption ™ Compact and light weight ™ 2 form c contact arrangement ™ Low magnetic arrangement ™ Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant ™ Tube packaging ™ UL recognized (E73266), CAS certified (LR46266).

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (EA2.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number EA2-12NP
Manufacturer NEC
File Size 102.04 KB
Description COMPACT AND LIGHTWEIGHT
Datasheet download datasheet EA2-12NP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
EA2-12 Miniature Signal Relays KEMET
EA2-24 Miniature Signal Relays KEMET
EA2-3 Miniature Signal Relays KEMET
EA2-4.5 Miniature Signal Relays KEMET
EA2-5 Miniature Signal Relays KEMET

Other Datasheets by NEC

Part Number Description
EA2-12NJ COMPACT AND LIGHTWEIGHT
EA2-12NU COMPACT AND LIGHTWEIGHT
EA2-12 COMPACT AND LIGHTWEIGHT
EA2-12S COMPACT AND LIGHTWEIGHT
EA2-12SNJ COMPACT AND LIGHTWEIGHT

Full PDF Text Transcription

Click to expand full text

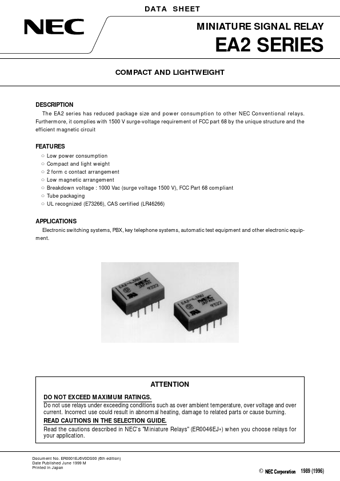

DATA S H E E T MINIATURE SIGNAL RELAY EA2 SERIES COMPACT AND LIGHTWEIGHT DESCRIPTION The EA2 series has reduced package size and power consumption to other NEC Conventional relays. Furthermore, it complies with 1500 V surge-voltage requirement of FCC part 68 by the unique structure and the efficient magnetic circuit FEATURES ™ Low power consumption ™ Compact and light weight ™ 2 form c contact arrangement ™ Low magnetic arrangement ™ Breakdown voltage : 1000 Vac (surge voltage 1500 V), FCC Part 68 compliant ™ Tube packaging ™ UL recognized (E73266), CAS certified (LR46266) APPLICATIONS Electronic switching systems, PBX, key telephone systems, automatic test equipment and other electronic equipment. ATTENTION DO NOT EXCEED MAXIMUM RATINGS.
