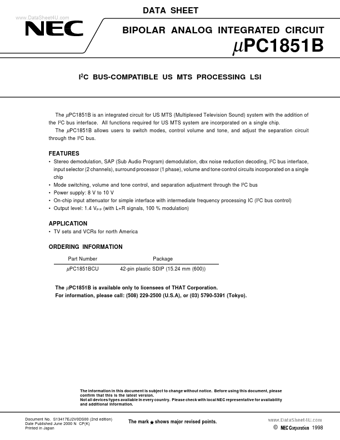

C1851BCU
FEATURES
- Stereo demodulation, SAP (Sub Audio Program) demodulation, dbx noise reduction decoding, I2C bus interface, input selector (2 channels), surround processor (1 phase), volume and tone control circuits incorporated on a single chip
- Mode switching, volume and tone control, and separation adjustment through the I2C bus
- Power supply: 8 V to 10 V
- On-chip input attenuator for simple interface with intermediate frequency processing IC (I2C bus control)
- Output level: 1.4 Vp-p (with L+R signals, 100 % modulation)
APPLICATION
- TV sets and VCRs for north America
ORDERING INFORMATION
Part Number Package 42-pin plastic SDIP (15.24 mm (600))
µPC1851BCU
The µPC1851B is available only to licensees of THAT Corporation. For information, please call: (508) 229-2500 (U.S.A), or (03) 5790-5391 (Tokyo).
