C1093 - ADJUSTABLE PRECISION SHUNT REGULATORS

Description

The µPC1093 are adjustable precision shunt regulators with guaranteed thermal stability.

The output voltage can be set to any value between reference voltage (2.495 V) and 36 V by two external resistors.

These ICs can apply to error amplifier of switching regulators.

Features

  • High Accuracy.
  • Low Temperature Coefficient.
  • Adjustable Output Voltage by two External Resistors.
  • Low Dynamic Impedance VREF = 2.495 V ± 2 % ∆VREF/∆T ≤ 100 ppm/°C VREF ≤ VO ≤ 36 V | ZKA | = 0.1 ΩTYP.

📥 Download Datasheet

Datasheet Details

Part number C1093
Manufacturer NEC
File Size 146.80 KB
Description ADJUSTABLE PRECISION SHUNT REGULATORS
Datasheet download datasheet C1093 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
C1096 Silicon NPN Transistor SavantIC
C1099-AL Flyback Transformers Coilcraft
C109A Silicon NPN Transistor Toshiba
C10-FR1 Power Inductors Mitsumi Electronics
C10-H Power Inductors Mitsumi Electronics

Other Datasheets by NEC

Part Number Description
C1094 SWITCHING REGULATOR CONTROL
C1099 SWITCHING REGULATOR CONTROL
C1009A 2SC1009A
C1060C 2.5V HIGH PRECISION REFERENCE VOLTAGE

Full PDF Text Transcription

Click to expand full text

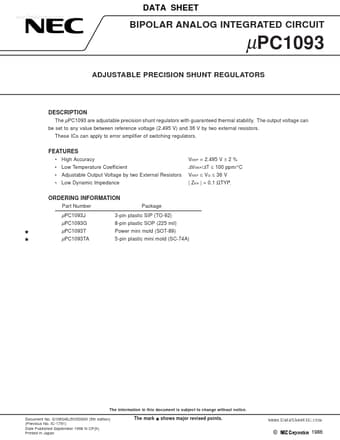

DATA SHEET www.DataSheet4U.com BIPOLAR ANALOG INTEGRATED CIRCUIT µPC1093 ADJUSTABLE PRECISION SHUNT REGULATORS DESCRIPTION The µPC1093 are adjustable precision shunt regulators with guaranteed thermal stability. The output voltage can be set to any value between reference voltage (2.495 V) and 36 V by two external resistors. These ICs can apply to error amplifier of switching regulators. FEATURES • High Accuracy • Low Temperature Coefficient • Adjustable Output Voltage by two External Resistors • Low Dynamic Impedance VREF = 2.495 V ± 2 % ∆VREF/∆T ≤ 100 ppm/°C VREF ≤ VO ≤ 36 V | ZKA | = 0.1 ΩTYP.
