AC12FSMA - (AC12DSMA / AC12FSMA) 12A RESIN INSULATION TYPE TRIAC

Product Overview

NEC

📥 Download Datasheet

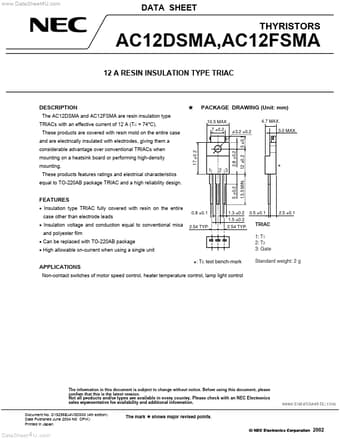

AC12FSMA (AC12DSMA / AC12FSMA) 12A RESIN INSULATION TYPE TRIAC by NEC - Datasheet Preview — Datasheet preview – AC12FSMA

Datasheet Details

Part number	AC12FSMA
Manufacturer	NEC
File Size	356.26 KB
Description	(AC12DSMA / AC12FSMA) 12A RESIN INSULATION TYPE TRIAC
Datasheet	AC12FSMA Datasheet
Additional preview pages of the AC12FSMA datasheet.

Product details

Description

The AC12DSMA and AC12FSMA are resin insulation type TRIACs with an effective current of 12 A (TC = 74°C).

Features

br>.
Insulation type TRIAC fully covered with resin on the entire case other than electrode leads.
Insulation voltage and conduction equal to conventional mica and polyester film.
Can be replaced with TO-220AB package.
High allowable on-current when using a single unit 0.8 ±0.1 2.54 TYP. 1.3 ±0.2 1.5 ±0.2 2.54 TYP. 13.5 MIN. 5 ±0.2 0.5 ±0.1 2.5 ±0.1 TRIAC 1: T1 2: T2 3: Gate.
