AC10FSMA - 10 A RESIN INSULATION TYPE TRIAC

Product Overview

NEC

📥 Download Datasheet

AC10FSMA 10 A RESIN INSULATION TYPE TRIAC by NEC - Datasheet Preview — Datasheet preview – AC10FSMA

Datasheet Details

Part number	AC10FSMA
Manufacturer	NEC
File Size	242.27 KB
Description	10 A RESIN INSULATION TYPE TRIAC
Datasheet	AC10FSMA Datasheet
Note	This datasheet PDF includes multiple part numbers: AC10FSMA, AC10DSMA. Please refer to the document for exact specifications by model.

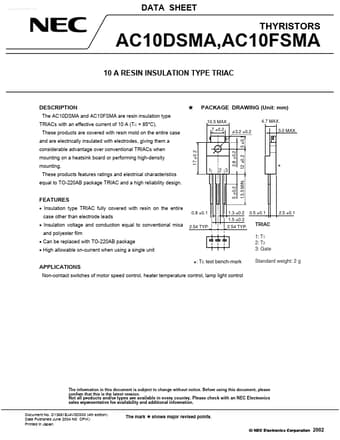

Additional preview pages of the AC10FSMA datasheet.

Product details

Description

The AC10DSMA and AC10FSMA are resin insulation type TRIACs with an effective current of 10 A (TC = 85°C).

Features

br>.
Insulation type TRIAC fully covered with resin on the entire case other than electrode leads.
Insulation voltage and conduction equal to conventional mica and polyester film.
Can be replaced with TO-220AB package.
High allowable on-current when using a single unit 0.8 ±0.1 2.54 TYP. 1.3 ±0.2 1.5 ±0.2 2.54 TYP. 13.5 MIN. 5 ±0.2 0.5 ±0.1 2.5 ±0.1 TRIAC 1: T1 2: T2 3: Gate.
