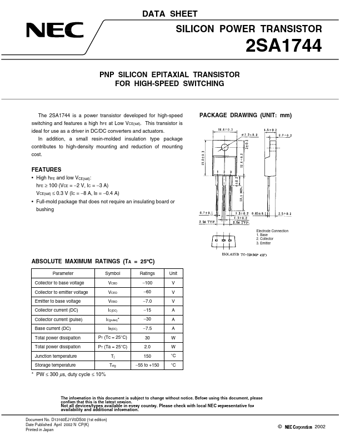

DATA SHEET SILICON POWER TRANSISTOR 2SA1744 PNP SILICON EPITAXIAL TRANSISTOR FOR HIGH-SPEED SWITCHING The 2SA1744 is a power transistor developed f.
of circuits, software and other related information in this document are provided for illustrative purposes in semiconductor product operation and ap.

A1744 Features

* a high hFE at Low VCE(sat). This transistor is ideal for use as a driver in DC/DC converters and actuators. In addition, a small resin-molded insulation type package contributes to high-density mounting and reduction of mounting cost. PACKAGE DRAWING (UNIT: mm) FEATURES
* High hFE and low

A1744 Applications

* of a semiconductor product depend on its quality grade, as indicated below. Customers must check the quality grade of each semiconductor product before using it in a particular application. "Standard": Computers, office equipment, communications equipment, test and measurement equipment, audio and v
