2SK3755 - SWITCHING N-CHANNEL POWER MOSFET

NEC

📥 Download Datasheet

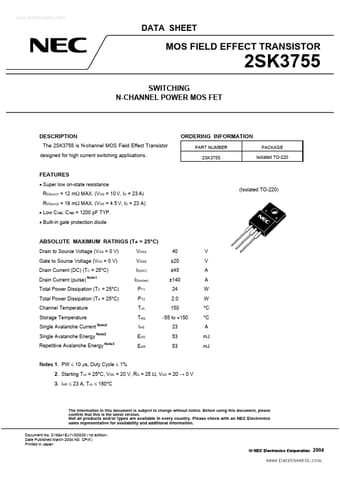

2SK3755 Datasheet Preview — Preview of 2SK3755 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK3755
Manufacturer	NEC
File Size	206.16 KB
Description	SWITCHING N-CHANNEL POWER MOSFET
Datasheet	2SK3755_NEC.pdf

2SK3755 Product details

Description

The 2SK3755 is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super low on-state resistance RDS(on)1 = 12 mΩ MAX. (VGS = 10 V, ID = 23 A) RDS(on)2 = 18 mΩ MAX. (VGS = 4.5 V, ID = 23 A).
Low C iss: C iss = 1200 pF TYP.
Built-in gate protection diode (Isolated TO-220).
