2SK3484 - SWITCHING N-CHANNEL POWER MOSFET

NEC

📥 Download Datasheet

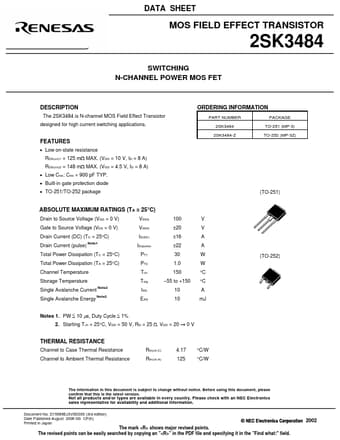

2SK3484 Datasheet Preview — Preview of 2SK3484 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK3484
Manufacturer	NEC
File Size	154.83 KB
Description	SWITCHING N-CHANNEL POWER MOSFET
Datasheet	2SK3484_NEC.pdf

2SK3484 Product details

Description

The 2SK3484 is N-channel MOS Field Effect Transistor designed for high current switching applications.

Features

Low on-state resistance RDS(on)1 = 125 mΩ MAX. (VGS = 10 V, ID = 8 A) RDS(on)2 = 148 mΩ MAX. (VGS = 4.5 V, ID = 8 A).
Low Ciss: Ciss = 900 pF TYP.
Built-in gate protection diode.
TO-251/TO-252 package.
