2SK2498 - N-Channel MOSFET

NEC

📥 Download Datasheet

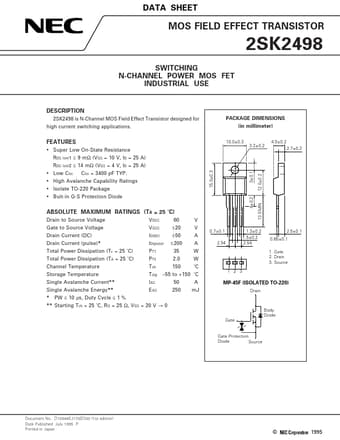

2SK2498 Datasheet Preview — Preview of 2SK2498 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2498
Manufacturer	NEC
File Size	131.53 KB
Description	N-Channel MOSFET
Datasheet	2SK2498_NEC.pdf

2SK2498 Product details

Description

2SK2498 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Super Low On-State Resistance RDS (on)1 ≤ 9 mΩ (VGS = 10 V, ID = 25 A) RDS (on)2 ≤ 14 mΩ (VGS = 4 V, ID = 25 A) 3.2±0.2 4±0.2.
15.0±0.3 High Avalanche Capability Ratings Isolate TO-220 Package Buit-in G-S Protection Diode.
