2SK2462 - SWITCHING N-CHANNEL POWER MOSFET

NEC

📥 Download Datasheet

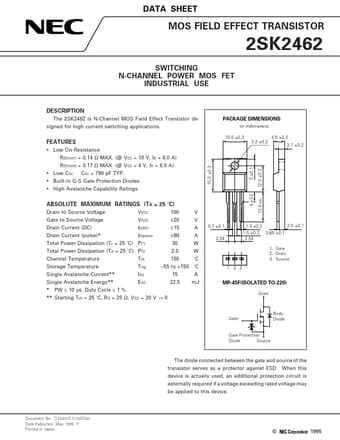

2SK2462 Datasheet Preview — Preview of 2SK2462 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK2462
Manufacturer	NEC
File Size	114.96 KB
Description	SWITCHING N-CHANNEL POWER MOSFET
Datasheet	2SK2462_NEC.pdf

2SK2462 Product details

Description

The 2SK2462 is N-Channel MOS Field Effect Transistor designed for high current switching applications.

Features

Low On-Resistance RDS(on)1 = 0.14 Ω MAX. (@ VGS = 10 V, ID = 8.0 A) 15.0 ±0.3 3 ±0.1 4 ±0.2.
Low Ciss Ciss = 790 pF TYP.
Built-in G-S Gate Protection Diodes.
High Avalanche Capability Ratings.
