2SC5761 - NPN SiGe RF TRANSISTOR

NEC

📥 Download Datasheet

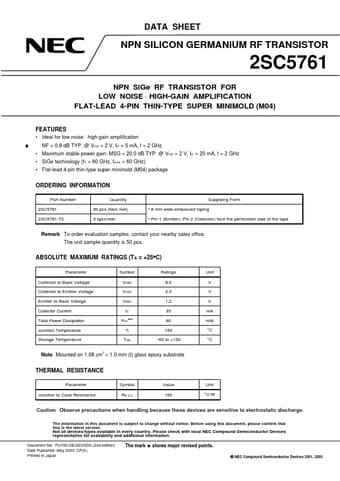

2SC5761 Datasheet Preview — Preview of 2SC5761 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SC5761
Manufacturer	NEC
File Size	106.88 KB
Description	NPN SiGe RF TRANSISTOR
Datasheet	2SC5761_NEC.pdf

2SC5761 Product details

Features

Ideal for low noise ⋅ high-gain amplification NF = 0.9 dB TYP. @ VCE = 2 V, IC = 5 mA, f = 2 GHz.
Maximum stable power gain: MSG = 20.0 dB TYP. @ VCE = 2 V, IC = 20 mA, f = 2 GHz.
SiGe technology (fT = 60 GHz, fmax = 60 GHz).
Flat-lead 4-pin thin-type super minimold (M04) package.
