2SC5408 - NPN TRANSISTOR

Features

  • NEC devices are classified into the following three quality grades: "Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on a customer designated "quality assurance program" for a specific.

📥 Download Datasheet

Datasheet Details

Part number 2SC5408
Manufacturer NEC
File Size 50.84 KB
Description NPN TRANSISTOR
Datasheet download datasheet 2SC5408 Datasheet

📁 Similar Datasheet

  • 2SC5404 - NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC5404 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SC5404 - NPN Transistor (INCHANGE)
  • 2SC5405 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5406 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5406A - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5407 - NPN TRANSISTOR (Panasonic Semiconductor)
  • 2SC5407 - NPN Transistor (INCHANGE)
  • 2SC5411 - NPN TRANSISTOR (Toshiba Semiconductor)
  • 2SC5411 - PNP Transistor (INCHANGE)
Other Datasheets by NEC

Full PDF Text Transcription

Click to expand full text

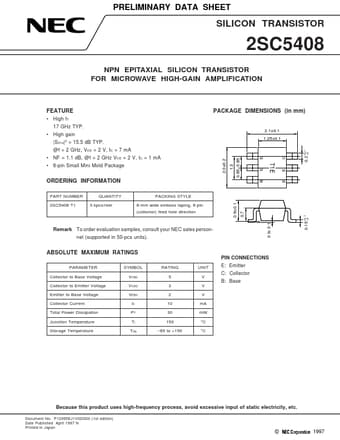

PRELIMINARY DATA SHEET SILICON TRANSISTOR 2SC5408 NPN EPITAXIAL SILICON TRANSISTOR FOR MICROWAVE HIGH-GAIN AMPLIFICATION FEATURE • High fT 17 GHz TYP. • High gain |S21e|2 = 15.5 dB TYP. @f = 2 GHz, VCE = 2 V, IC = 7 mA • NF = 1.1 dB, @f = 2 GHz VCE = 2 V, IC = 1 mA • 6-pin Small Mini Mold Package PACKAGE DIMENSIONS (in mm) 2.1±0.1 1.25±0.1 0.2 +0.1 –0 0.15 +0.1 –0 1.3 0.65 0.65 2.0±0.2 E ORDERING INFORMATION PART NUMBER 2SC5408-T1 QUANTITY 3 kpcs/reel PACKING STYLE 8-mm wide emboss taping, 6-pin (collector) feed hole direction 0.9±0.1 B 0.7 Remark To order evaluation samples, consult your NEC sales personnel (supported in 50-pcs units).
