NE500199, NE500100 C-Band Medium Power GaAs MESFET

NEC Electronics

Description

C-BAND MEDIUM POWER GaAs MESFET NE8500100 NE8500199 .
The NE8500199 is a medium power GaAs MESFET designed for up to a 1W output stage or as a driver for higher power devices.

📥 Download Datasheet

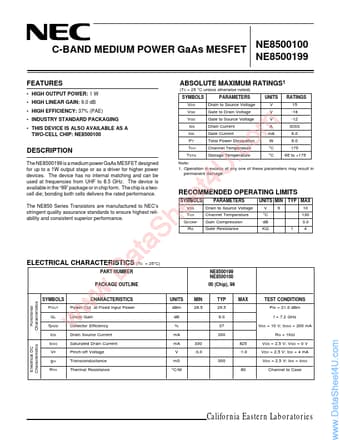

NE500199 Datasheet Preview — This datasheet PDF includes multiple part numbers: NE500199, NE500100. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: NE500199, NE500100
Manufacturer: NEC Electronics
File Size: 86.97 KB
Datasheet: NE500100_NECElectronics.pdf
Description: C-Band Medium Power GaAs MESFET
Note: This datasheet PDF includes multiple part numbers: NE500199, NE500100.
Please refer to the document for exact specifications by model.

Features

* HIGH OUTPUT POWER: 1 W
* HIGH LINEAR GAIN: 9.0 dB
* HIGH EFFICIENCY: 37% (PAE)
* INDUSTRY STANDARD PACKAGING
* THIS DEVICE IS ALSO AVAILABLE AS A TWO-CELL CHIP: NE8500100 ABSOLUTE MAXIMUM RATINGS1 (TC = 25 °C unless otherwise noted) SYMBOLS VDS VGD VGS IDS
