NCE65NF036T Datasheet - NCE Power Semiconductor

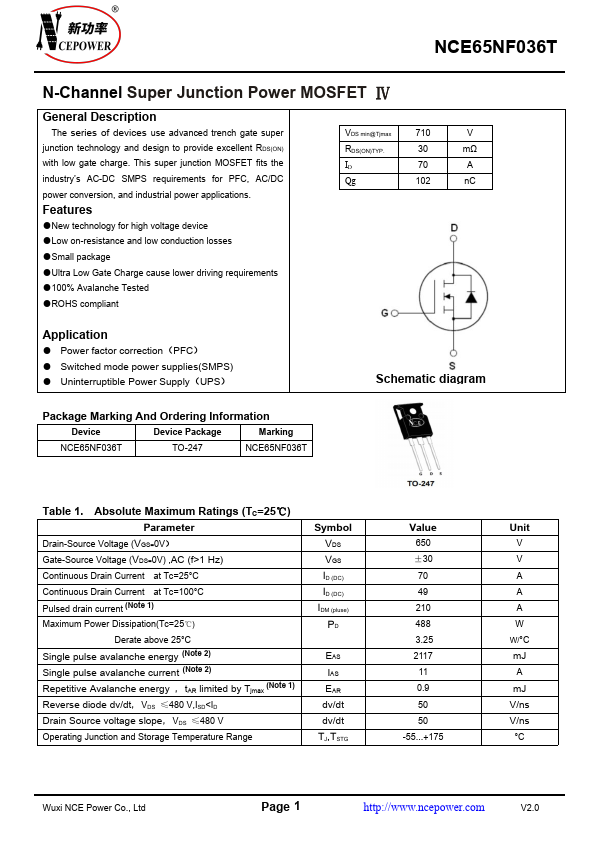

NCE65NF036T N-Channel Super Junction Power MOSFET

NCE65NF036T Features

* New technology for high voltage device

* Low on-resistance and low conduction losses

* Small package

* Ultra Low Gate Charge cause lower driving requirements

* 100% Avalanche Tested

* ROHS compliant VDS min@Tjmax 710 V RDS(ON)TYP. 30 mΩ ID 70 A Qg 102 nC Application

Datasheet Details

NCE65NF036T

NCE Power Semiconductor

950.34 KB

N-channel super junction power mosfet.
