BSS138K - N-Channel Enhancement Mode Power MOSFET

Datasheet Summary

Features

  • VDS = 50V,ID = 0.22A RDS(ON) < 3Ω @ VGS=5V RDS(ON) < 2Ω @ VGS=10V ESD Rating：HBM 2300V Schematic diagram.
  • High power and current handing capability.
  • Lead free product is acquired.
  • Surface mount package.

📥 Download Datasheet

Datasheet preview – BSS138K

Datasheet Details

Part number BSS138K
Manufacturer NCE Power Semiconductor
File Size 278.60 KB
Description N-Channel Enhancement Mode Power MOSFET
Datasheet download datasheet BSS138K Datasheet
Additional preview pages of the BSS138K datasheet.

📁 Similar Datasheet

  • BSS138K - N-Channel MOSFET (Fairchild Semiconductor)
  • BSS138K - N-Channel Logic Level Enhancement Mode Field Effect Transistor (ON Semiconductor)
  • BSS138K - 50V N-CHANNEL ENHANCEMENT MODE MOSFET (DIODES)
  • BSS138KR - N-Channel 50-V MOSFET (H&M Semiconductor)
  • BSS138 - N-Channel MOSFET (Fairchild Semiconductor)
  • BSS138 - N-Channel MOSFET (ON Semiconductor)
  • BSS138 - N-Channel 50-V(D-S) MOSFET (H&M Semiconductor)
  • BSS138 - N-Channel MOSFET (MCC)
  • BSS138 - N-Channel MOSFET (National Semiconductor)
  • BSS138 - SMD Power MOSFET Transistor (TAITRON)
Other Datasheets by NCE Power Semiconductor

    Full PDF Text Transcription

    Click to expand full text

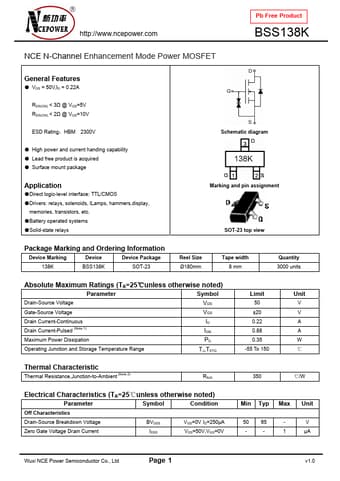

    http://www.ncepower.com Pb Free Product BSS138K NCE N-Channel Enhancement Mode Power MOSFET General Features ● VDS = 50V,ID = 0.22A RDS(ON) < 3Ω @ VGS=5V RDS(ON) < 2Ω @ VGS=10V ESD Rating：HBM 2300V Schematic diagram ● High power and current handing capability ● Lead free product is acquired ● Surface mount package Application ●Direct logic-level interface: TTL/CMOS ●Drivers: relays, solenoids, lLamps, hammers,display, memories, transistors, etc.
