ACV11212, ACV - MICRO-ISO/MICRO-280 RELAY

Name: ACV11212
SKU: ACV11212-852344

NAiS

The ACV11212 by NAiS is a MICRO-ISO/MICRO-280 RELAY. Below is the official datasheet preview.

Datasheet Details

Part number	ACV11212, ACV
Manufacturer	NAiS
File Size	124.82 KB
Description	MICRO-ISO/MICRO-280 RELAY
Datasheet	ACV-31012.pdf
Note	This datasheet PDF includes multiple part numbers: ACV11212, ACV. Please refer to the document for exact specifications by model.

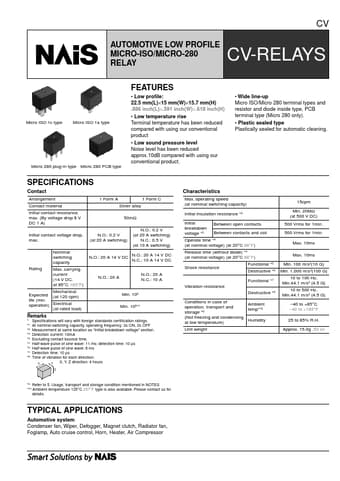

Additional preview pages of the ACV11212 datasheet.

Low proﬁle: 22.5 mm(L)×15 mm(W)×15.7 mm(H) .886 inch(L)×.591 inch(W)×.618 inch(H).
Low temperature rise Terminal temperature has been reduced compared with using our conventional product.
Low sound pressure level Noise level has been reduced approx.10dB compared with using our conventional product.
Wide line-up Micro ISO/Micro 280 terminal types and resistor and diode inside type, PCB terminal type (Micro 280 only).
Plastic sealed type Plastically.
