AGQ200 Ultra-small Package Flat Polarized Relay

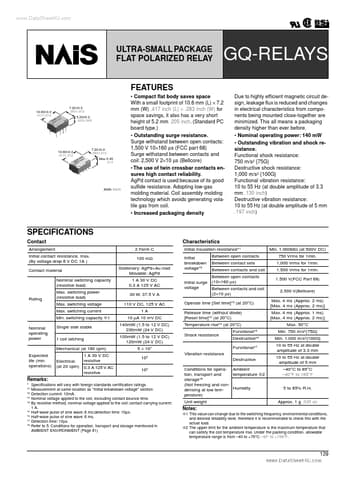

www.DataSheet4U.com GQ TESTING ULTRA-SMALL PACKAGE FLAT POLARIZED RELAY GQ-RELAYS Due to highly efﬁcient magnetic circuit design, leakage ﬂux is reduced and changes in electrical characteristics from components being mounted close-together are minimized. This all means a packaging density higher than ever before. Nominal operating power: 140 mW Outstanding vibration and shock resistance. Functional shock resistance: 750 m/s2 {75G} Destructive shock resistance: 1,000 m/s2 {.

AGQ200 Features

* 10.60±0.3 .417±.012 7.20±0.3 .283±.012 5.20±0.2 .205±.008 10.60±0.3 .417±.012 7.20±0.3 .283±.012 Max.5.40 .213 mm inch

* Compact ﬂat body saves space With a small footprint of 10.6 mm (L) × 7.2 mm (W) .417 inch (L) × .283 inch (W) for space savings, it also has a very short height of 5.2
