MTD505 - 5 Port 10M/100M Ethernet Switch

Name: MTD505
SKU: MTD505-573569

Myson

The MTD505 by Myson is a 5 Port 10M/100M Ethernet Switch. Below is the official datasheet preview.

Datasheet Details

Part number	MTD505
Manufacturer	Myson
File Size	230.19 KB
Description	5 Port 10M/100M Ethernet Switch
Datasheet	MTD505_Myson.pdf

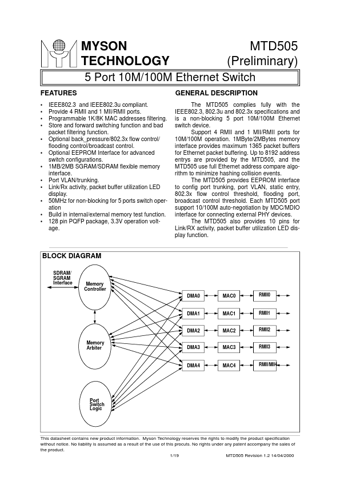

Additional preview pages of the MTD505 datasheet.

The MTD505 complies fully with the IEEE802.3, 802.3u and 802.3x specifications and is a non-blocking 5 port 10M/100M Ethernet switch device.

IEEE802.3 and IEEE802.3u compliant. Provide 4 RMII and 1 MII/RMII ports. Programmable 1K/8K MAC addresses filtering. Store and forward switching function and bad packet filtering function. Optional back_pressure/802.3x flow control/ flooding control/broadcast control. Optional EEPROM Interface for advanced switch configurations. 1MB/2MB SGRAM/SDRAM flexible memory interface. Po.
