MTD49x - (MTDxxx) Coaxial Transceiver Interface

Download the MTD49x datasheet PDF. This datasheet also covers the MTD392 variant, as both devices belong to the same (mtdxxx) coaxial transceiver interface family and are provided as variant models within a single manufacturer datasheet.

Description

The MTD392 family includes a series of products, MTD392/3/4 and MTD492/3/4.

The MTD392 product family is built for easy MAU interface in a coaxial Ethernet network.

Features

  • MTD392 FAMILY Compatible with ISO/IEEE 802.3 10Base5 (Ethernet) and 10Base2 (Cheapernet). Functionally compatible with National DP8392C. Internal squelch circuitry for noise rejection. Reception/transmission mode collision detection. Transceiver functions integrated except for signal and power isolation. CD heartbeat externally selectable. Advanced low-power, high-performance CMOS technology. ESD protection greater than 20.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MTD392_Myson.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number MTD49x
Manufacturer Myson
File Size 281.26 KB
Description (MTDxxx) Coaxial Transceiver Interface
Datasheet download datasheet MTD49x Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MTD4100-8 (MT Series) DC/DC Converters Astec Standard Power
MTD4100-9 (MT Series) DC/DC Converters Astec Standard Power
MTD48 48 Lead Molded Thin Shrink Small Outline Package National Semiconductor
MTD4N20E TMOS POWER FET 4.0 AMPERES 200 VOLTS RDS(on) = 1.2 OHM Motorola
MTD4P05 (MTD4P05 / MTD4P06) POWER FIELD EFFECT TRANSISTOR Motorola

Other Datasheets by Myson

Part Number Description
MTD492 Coaxial Transceiver Interface
MTD214 Ethernet Encoder/Decoder and 10BaseT Transceiver with Built-in Waveform Shaper
MTD392 (MTDxxx) Coaxial Transceiver Interface
MTD393 (MTDxxx) Coaxial Transceiver Interface
MTD394 (MTDxxx) Coaxial Transceiver Interface

Full PDF Text Transcription

Click to expand full text

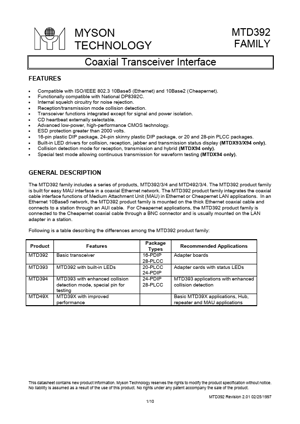

MYSON TECHNOLOGY Coaxial Transceiver Interface FEATURES · · · · · · · · · · · · MTD392 FAMILY Compatible with ISO/IEEE 802.3 10Base5 (Ethernet) and 10Base2 (Cheapernet). Functionally compatible with National DP8392C. Internal squelch circuitry for noise rejection. Reception/transmission mode collision detection. Transceiver functions integrated except for signal and power isolation. CD heartbeat externally selectable. Advanced low-power, high-performance CMOS technology. ESD protection greater than 2000 volts. 16-pin plastic DIP package, 24-pin skinny plastic DIP package, or 20 and 28-pin PLCC packages. Built-in LED drivers for collision, reception, jabber and transmission status display (MTDX93/X94 only). Collision detection mode for reception, transmission and hybrid (MTDX94 only).
