NMG0524SC - Isolated 2W Single Output DC/DC Converters

Product Overview

Murata

📥 Download Datasheet

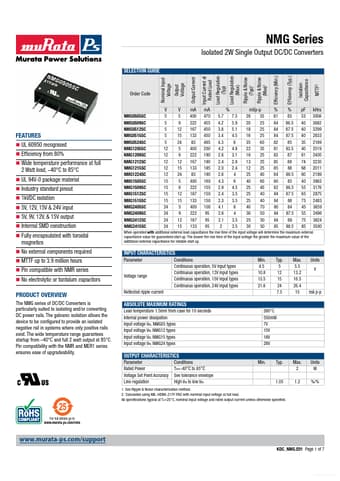

NMG0524SC Isolated 2W Single Output DC/DC Converters by Murata - Datasheet Preview — Datasheet preview – NMG0524SC

Datasheet Details

Part number	NMG0524SC
Manufacturer	Murata
File Size	192.20 KB
Description	Isolated 2W Single Output DC/DC Converters
Datasheet	NMG0524SC Datasheet
Note	This datasheet PDF includes multiple part numbers: NMG0524SC, NMG. Please refer to the document for exact specifications by model.
Additional preview pages of the NMG0524SC datasheet.

Product details

Features

UL 60950 recognised.
Efﬁciency from 80%.
Wide temperature performance at full 2 Watt load,.
40°C to 85°C.
UL 94V-0 package material.
Industry standard pinout.
1kVDC isolation.
5V, 12V, 15V & 24V input.
5V, 9V, 12V, & 15V output.
Internal SMD construction.
Fully encapsulated with toroidal magnetics.
No external components required.
MTTF up to 3.9 million hours.
Pin compati.
