NKE1215DC - Isolated Sub-Miniature 1W Single Output DC/DC Converters

Product Overview

Murata

📥 Download Datasheet

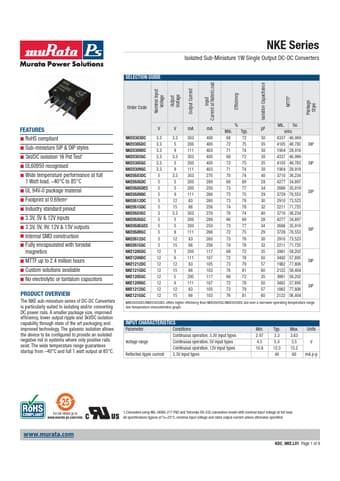

NKE1215DC Isolated Sub-Miniature 1W Single Output DC/DC Converters by Murata - Datasheet Preview — Datasheet preview – NKE1215DC

Datasheet Details

Part number	NKE1215DC
Manufacturer	Murata
File Size	256.80 KB
Description	Isolated Sub-Miniature 1W Single Output DC/DC Converters
Datasheet	NKE1215DC Datasheet
Note	This datasheet PDF includes multiple part numbers: NKE1215DC, NKE. Please refer to the document for exact specifications by model.
Additional preview pages of the NKE1215DC datasheet.

Product details

Features

RoHS compliant.
Sub-miniature SIP & DIP styles.
3kVDC isolation ‘Hi Pot Test’.
UL60950 recognised.
Wide temperature performance at full 1 Watt load,.
40°C to 85°C.
UL 94V-0 package material.
Footprint at 0.69cm2.
Industry standard pinout.
3.3V, 5V & 12V inputs.
3.3V, 5V, 9V, 12V & 15V outputs.
Internal SMD construction.
Fully encapsulated with toroidal magnetics.
MTTF up.
