NDL2405SC - Isolated 2W Wide Input Single Output DC/DC Converters

Download the NDL2405SC datasheet PDF. This datasheet also covers the NDL0505SC variant, as both devices belong to the same isolated 2w wide input single output dc/dc converters family and are provided as variant models within a single manufacturer datasheet.

General Description

The NDL series is a range of high performance miniature DC/DC converters having regulated outputs over the wide temperature range of -40ºC to 85ºC.

The input voltage range is 2:1 with the output power at 2 watts and the input to output isolation is 1kVDC.

Key Features

  •  RoHS compliant.
  •  2:1 wide range voltage input.
  •  Continuous short circuit protection with current foldback.
  •  Operating temperature range -40ºC to 85ºC.
  •  0.75% regulation.
  •  1kVDC Isolation.
  •  Efficiency to 83%.
  •  Power density 0.9W/cm3.
  •  5V, 12V, 24V & 48V nominal input.
  •  5V, 9V, 12V & 15V output.
  •  No electrolytic capacitors.
  •  Fully encapsulated.
  •  External control.
  •  Low nois.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (NDL0505SC-Murata.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number NDL2405SC
Manufacturer Murata
File Size 107.82 KB
Description Isolated 2W Wide Input Single Output DC/DC Converters
Datasheet download datasheet NDL2405SC Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
NDL28P 2Gb (x8) DDR3L Synchronous DRAM Insignis
NDL16PFJ 1Gb (x16) - DDR3/3L Synchronous DRAM Insignis
NDL3321ST 650nm AlGaInP MQW VISIBLE LASER DIODE Renesas
NDL3321SU 650nm AlGaInP MQW VISIBLE LASER DIODE Renesas
NDL5003 1300NM OPTICAL FIBER COMMUNICATIONS INGAASP DOUBLE HETEROSTRUCTURE LASER DIODE NEC

Other Datasheets by Murata

Part Number Description
NDL2409SC Isolated 2W Wide Input Single Output DC/DC Converters
NDL2412SC Isolated 2W Wide Input Single Output DC/DC Converters
NDL2415SC Isolated 2W Wide Input Single Output DC/DC Converters
NDL0505SC Isolated 2W Wide Input Single Output DC/DC Converters
NDL0509SC Isolated 2W Wide Input Single Output DC/DC Converters

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

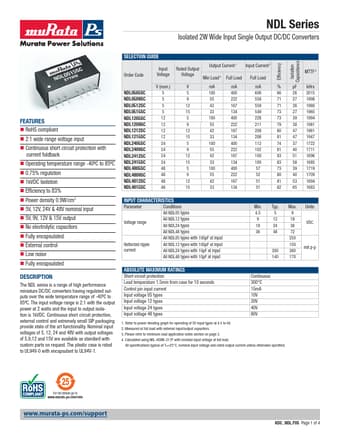

www.murata-ps.com NDL Series Isolated 2W Wide Input Single Output DC/DC Converters SELECTION GUIDE Input Voltage V (nom.
