Microwave Components

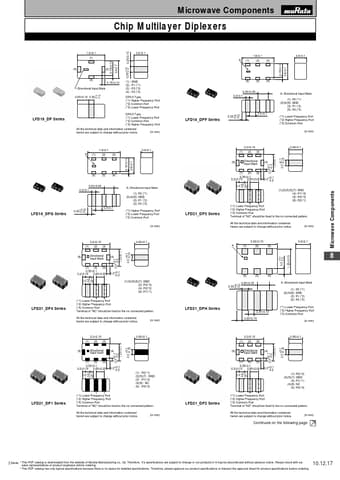

Chip Multilayer Diplexers
0.25±0.15 1.6±0.1 (1) 0.15±0.10 0.8 -0.1
+0.2
0.6±0.1 A (1)
1.6±0.1 (2) (3) 0.15±0.10 0.8±0.1
0.6±0.1
(4)
(2)
(3) Directional Input Mark 0.65±0.15 0.30-0.15
+0.10
0.30-0.15
+0.10
0.15±0.10
(1) : GND (2) : P1 (*1) (3) : P3 (*2) (4) : P2 (*3) DP3,5 Type (*1) Higher Frequency Port (*2) Common Port (*3) Lower Frequency Port DP4,6 Type (*1) Lower Frequency Port (*2) Common Port (*3) Higher Frequency Port
(6)
(5)
(4)
0.50±0.05 0.2±0.1
A: Directional Input Mark (1): P2 (*1) (2)(4)(6): GND (3): P1 (*2) (5): P3 (*3)
LFD18_DP Series
LFD18_DPF Series
0.20-0.15
+0.10
0.3±0.
LFD181G57DPGC092 Datasheet
