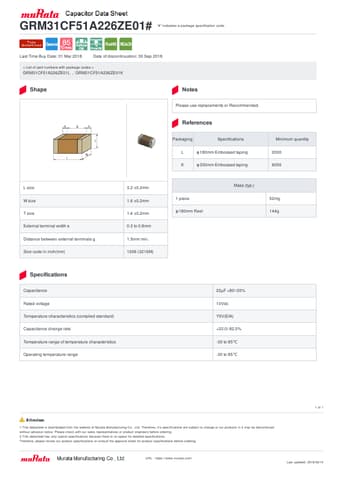

GRM31CF51A226ZE01# “#” indicates a package specification code.
Last Time Buy Date: 31 Mar 2018
Date of discontinuation: 30 Sep 2018
< List of part numbers with package codes >
GRM31CF51A226ZE01L , GRM31CF51A226ZE01K
Shape
Notes
Please use replacements or Recommended.
References
Packaging
Specifications
L φ180mm Embossed taping
K φ330mm Embossed taping
Minimum quantity 2000 6000
L size W size T size External terminal width e Distance between external terminals g Size code in inch(mm)
3.2 ±0.2mm 1.6 ±0.2mm 1.6 ±0.2mm 0.3 to 0.8mm 1.5mm min. 1206 (3216M)
1 piece φ180mm Reel
Mass (typ.
