DLW5BTZ102TQ2L - Wire Wound Chip Common Mode Choke Coil

Product Overview

Murata

Part number	DLW5BTZ102TQ2L
Manufacturer	Murata
File Size	470.50 KB
Description	Wire Wound Chip Common Mode Choke Coil
Datasheet	DLW5BTZ102TQ2L Datasheet
Note	This datasheet PDF includes multiple part numbers: DLW5BTZ102TQ2L, DLW5BTZ101TQ2L. Please refer to the document for exact specifications by model.

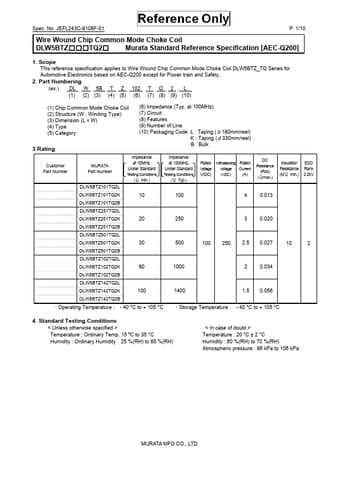

Additional preview pages of the DLW5BTZ102TQ2L datasheet.

(9) Number of Line (10) Packaging Code L : Taping (φ180mm/reel) K : Taping (φ330mm/reel) B : Bulk Customer Part Number MURATA Part Number DLW5BTZ101TQ2L Impedance at 10MHz, Under Standard Testing Conditions (Ω min. ) Impedance at 100MHz, Under Standard Testing Conditions (Ω Typ. ) Rated Withstanding Rated Voltage Voltage Current V(DC) V(DC) (A) DC Resistance (Rdc) (Ωmax. ) Insulation Resistance (MΩ min. ) ESD Rank 2.2kV DLW5BTZ101TQ2K 10 100 4 0.013 DLW5BTZ101TQ2B DLW5BTZ251TQ2L DL.
