DHS4E4G441KH2B “#” indicates a package specification code.
Last Time Buy Date: 31 Mar 2020
Date of discontinuation: 30 Sep 2020
< List of part numbers with package codes >
DHS4E4G441KH2B
Shape
References
Packaging B Box
Specifications
Minimum quantity 1
Outer diameter D L size H size (typical value) t size Terminal shape (screw type)
30.0 ±1.5mm 36.0 ±1.5mm 32mm none ISO M4, P0.7 (Metric Screw Thread)
Specifications
Capacitance Rated voltage Temperature characteristics (complied standard) Temperature coefficient Temperature range of temperature characteristics Operating temperature range
440pF ±10% 40kVdc N4700(EIA) -4700±1000ppm/℃ 20 to 85℃ -20 to 85℃
1 of 1
1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd.

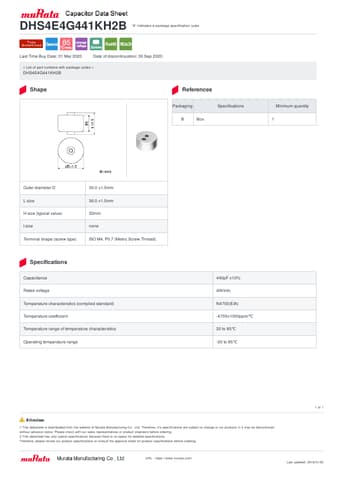

DHS4E4G441KH2B Datasheet
