ACM3P-4-AC1-R-C, ACM3P - Three-Phase AC Ammeters

Murata Power Solutions

📥 Download Datasheet

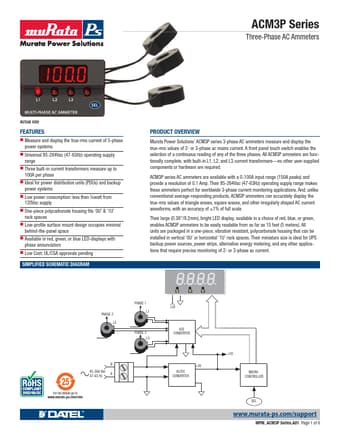

ACM3P-4-AC1-R-C Datasheet Preview — This datasheet PDF includes multiple part numbers: ACM3P-4-AC1-R-C, ACM3P. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ACM3P-4-AC1-R-C, ACM3P
Manufacturer	Murata Power Solutions
File Size	413.07 KB
Description	Three-Phase AC Ammeters
Datasheet	ACM3P_MurataPowerSolutions.pdf
Note	This datasheet PDF includes multiple part numbers: ACM3P-4-AC1-R-C, ACM3P. Please refer to the document for exact specifications by model.

ACM3P-4-AC1-R-C Product details

Features

 Measure and display the true-rms current of 3-phase power systems.
 Universal 85-264Vac (47-63Hz) operating supply range.
 Three built-in current transformers measure up to 100A per phase.
 Ideal for power distribution units (PDUs) and backup power systems.
 Low power consumption: less than ¼watt from 120Vac supply.
 One-piece polycarbonate housing ﬁts ‘0U’ & ‘1U’ rack spaces.
 Low-proﬁle surface mount design occupies minimal behind-the-panel space.
 Ava.
