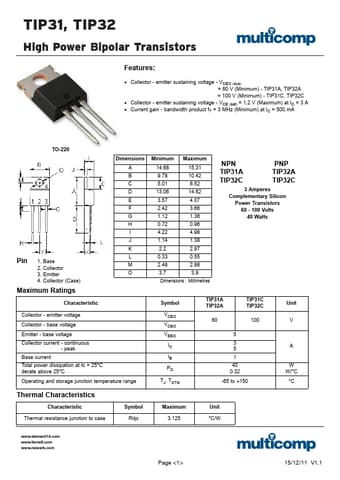

TIP31 - High Power Bipolar Transistor

Multicomp

Datasheet Details

Part number	TIP31
Manufacturer	Multicomp
File Size	238.11 KB
Description	High Power Bipolar Transistor
Datasheet	TIP31-Multicomp.pdf

Collector - emitter sustaining voltage - VCEO (sus) = 60 V (Minimum) - TIP31A, TIP32A = 100 V (Minimum) - TIP31C, TIP32C.
Collector - emitter sustaining voltage - VCE (sat) = 1.2 V (Maximum) at IC = 3 A.
Current gain - bandwidth product fT = 3 MHz (Minimum) at IC = 500 mA TO-220 Pin 1. Base 2. Collector 3. Emitter 4. Collector (Case) Maximum Ratings Dimensions A B C D E F G H I J K L M O Characteristic Collector - emitter voltage Collector - base voltage Emitt.
