Thick Film Chip Resistor
0603
Features
• Small size and light weight • Suitable for both wave and reflow soldering • Reduction of assembly costs
Performance Specification
Temperature Coefficient : 1Ω to 10Ω ±400PPM/°C 11Ω to 100Ω ±200PPM/°C >100Ω ±100PPM/°C Short Time Overload : ±5% : ±(2% +0.1Ω)Max. ±1% : ±(1% +0.1Ω)Max. Insulation Resistance : Min. 1,000MΩ Dielectric Withstanding Voltage : No evidence of flashover, mechanical damage, arcing or insulation breakdown. Terminal Bending : ±(1% +0.05Ω) Max. Soldering Heat : ±(1% +0.05Ω) Max. Solderability : Min. 95% coverage Temperature Cycling : ±5% : ±(1% +0.05Ω) Max. ±1% : ±(0.5% +0.05Ω) Max. Humidity (Steady State) : ±5% : ±(3% +0.1Ω) Max. ±1% : ±(0.5% +0.1Ω) Max. Load Life in Humidity : ±5% : ±(3% +0.1Ω) Max.

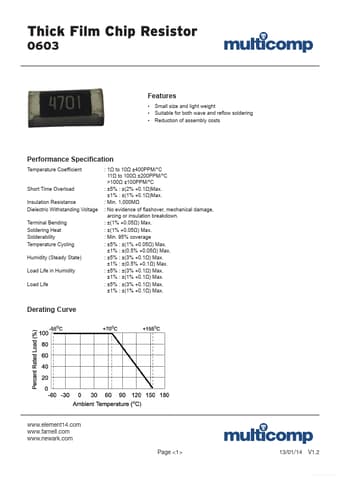

MC0603WG00000T5E-TC Datasheet
