MBR1645, MBR16100 Schottky Barrier Rectifiers

MBR1645 Description

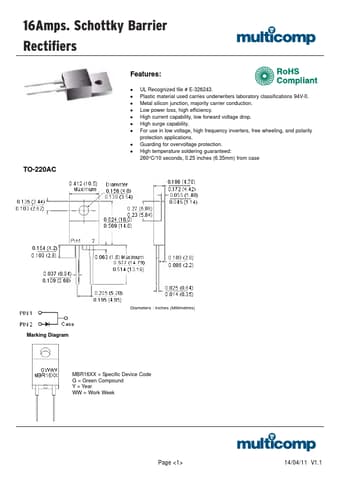

16Amps.Schottky Barrier Rectifiers TO-220AC .

MBR1645 Features

* UL Recognized file # E-326243.
* Plastic material used carries underwriters laboratory classifications 94V-0.
* Metal silicon junction, majority carrier conduction.
* Low power loss, high efficiency.
* High current capability, low forward voltage drop.

MBR1645 Applications

* Guarding for overvoltage protection.
* High temperature soldering guaranteed: 260°C/10 seconds, 0.25 inches (6.35mm) from case Marking Diagram Diameters : Inches (Millimetres) MBR16XX = Specific Device Code G = Green Compound Y = Year WW = Work Week Page 14/04/11 V1.1 16

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MBR1645, MBR16100. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MBR1645, MBR16100
Manufacturer
Multicomp
File Size
288.41 KB
Datasheet
MBR16100-Multicomp.pdf
Description
Schottky Barrier Rectifiers
Note
This datasheet PDF includes multiple part numbers: MBR1645, MBR16100.
Please refer to the document for exact specifications by model.
