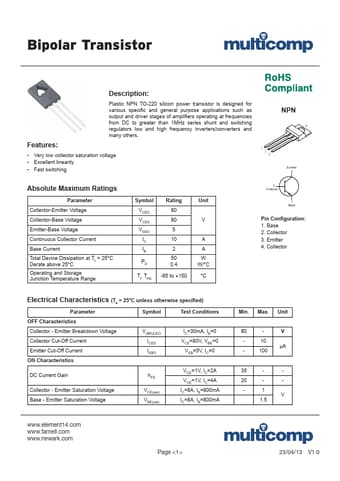

D44H10 Datasheet Preview — Preview of D44H10 PDF

Datasheet Details

Part number: D44H10
Manufacturer: Multicomp
File Size: 203.49 KB
Datasheet: D44H10-Multicomp.pdf
Description: Bipolar Transistor

D44H10 Product details

Description

Plastic NPN TO-220 silicon power transistor is designed for various specific and general purpose applications such as output and driver stages of amplifiers operating at frequencies from DC to greater than 1MHz series shunt and switching regulators low and high frequency inverters/converters and many others.

Features

Very low collector saturation voltage.
Excellent linearity.
Fast switching NPN Emitter 3 Absolute Maximum Ratings Parameter Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Continuous Collector Current Base Current Total Device Dissipation at Tc = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VCEO VCES VEBO IC IB PD Rating 80 80 5 10 2 50 0.4 Tj, Tstg -65 to +150 Unit V A A W W/°C °C 2 Collector 1 Base P.
